How to Build a DIY Water Filter with Minimal Gear

This is the article for when the power is out, the store shelves are empty, and you have no commercial filter on hand. A functional water filter can be built from materials found in almost any home, garage, or natural environment — in under an hour, with no special tools.

This is not a backup plan. This is a core skill. The ability to produce filtered water from raw materials is one of the most valuable capabilities a prepared person can have.

What This Filter Does — and Doesn’t Do

Removes: Sediment, turbidity, particulate matter, some chemical contaminants (with activated charcoal), taste and odor compounds.
Does not remove: Bacteria, viruses, protozoa — on its own.

A DIY filter is a pre-treatment step, not a complete purification system. After filtering, always disinfect with boiling, chemical treatment, or UV light before drinking. The filter makes disinfection more effective by removing the particles that shield microorganisms from heat and chemicals.

Together — filter then disinfect — you have a complete system built from almost nothing.

What You Need

Container options (pick one): A 2-liter plastic bottle, a large tin can, a plastic bucket with a hole in the bottom, a cloth bag or sock tied at the bottom, or bamboo/hollow log section for true field improvisation.

Filtering media — layer from top to bottom:

• Layer 1 — Coarse pre-filter: grass, small pebbles, or crumpled cloth
• Layer 2 — Fine gravel or small stones
• Layer 3 — Coarse sand
• Layer 4 — Fine sand
• Layer 5 — Activated charcoal or crushed charcoal (the most important layer)
• Layer 6 — Fine cloth or coffee filter at the outlet

Where to Find Filtering Media When You Have Nothing

Sand: Riverbanks, creek beds, beaches, children’s sandboxes, bags of play sand from hardware stores.
Gravel: Driveways, riverbeds, landscaping areas, aquarium gravel.
Charcoal: The most critical material — and the most improvised.

Making Charcoal in the Field

If you have no activated charcoal, you can make functional charcoal from wood:

1. Build a small fire and burn hardwood (oak, hickory, maple — avoid softwoods and treated wood) until it produces glowing coals
2. Allow the coals to cool completely
3. Crush the cooled charcoal into small pieces — roughly pea-sized or smaller
4. Do not use ash — only the solid black charcoal pieces
5. Rinse the crushed charcoal with clean water before adding to your filter to remove fine dust

Field-made charcoal is less effective than commercial activated charcoal but significantly better than none at all.

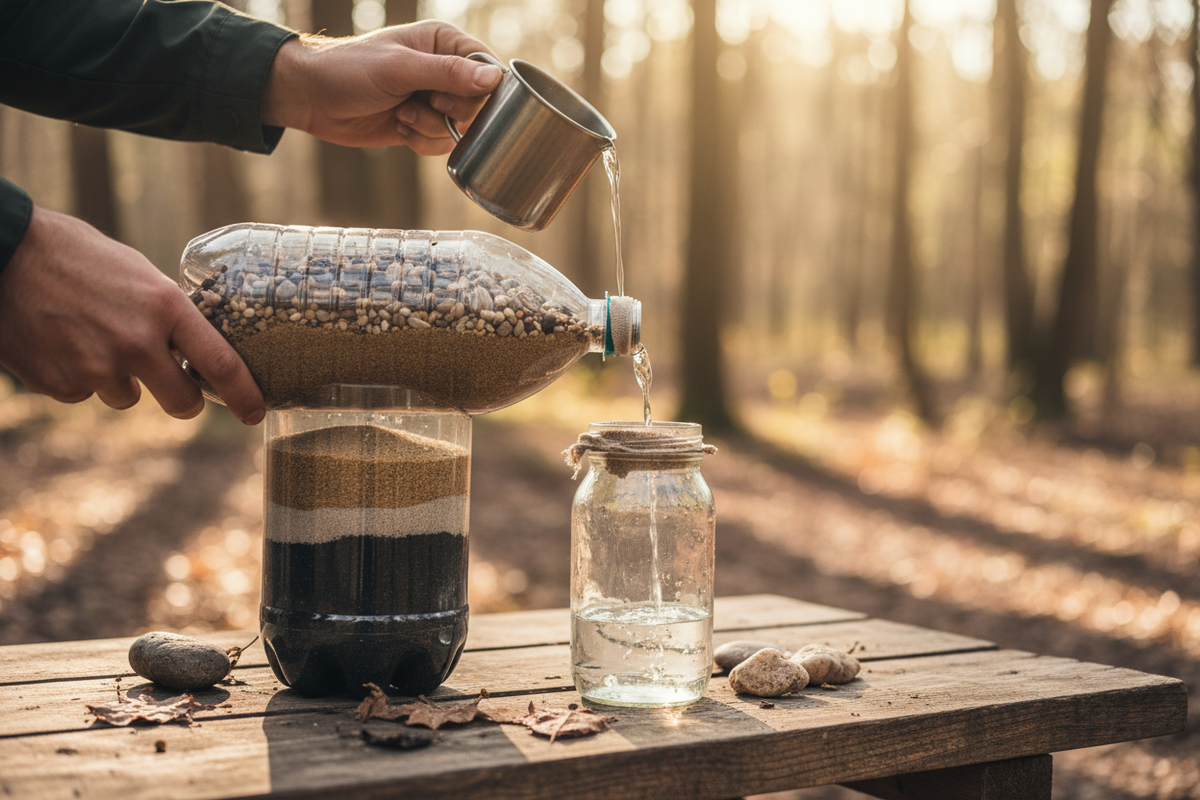

Build 1: The 2-Liter Bottle Filter

1. Cut the bottom off a 2-liter plastic bottle — this becomes the top opening where water enters
2. Poke 5–8 small holes in the bottle cap, or cover the cap opening with a double layer of cloth secured with a rubber band
3. Turn the bottle upside down so the cap end faces down — this is your outlet
4. Layer your filtering media from bottom (outlet end) to top (inlet end): fine cloth against the outlet holes, 2–3 inches of fine sand, 2–3 inches of coarse sand, 2–3 inches of crushed charcoal, 2–3 inches of fine gravel, 2–3 inches of coarse gravel, and a layer of grass or coarse cloth at the very top
5. Suspend the bottle over a clean collection container
6. Pour source water slowly into the top
7. Discard the first two passes of water — this flushes fine particles and charcoal dust from the filter
8. The water coming out should be visibly clearer than what went in — if not, run it through again

Flow rate: approximately 1 liter per 15–20 minutes. Slow is normal and indicates the filter is working.

Build 2: The Bucket Filter

1. Drill or punch 8–10 small holes in the bottom of a 5-gallon bucket
2. Line the bottom with a double layer of cloth or coffee filters
3. Layer filtering media in the same order as the bottle filter — scaled up to fill the bucket
4. Place the bucket on an elevated surface over a clean collection container
5. Pour source water in from the top
6. Collect and discard the first full bucket of output before using for drinking

A bucket filter produces approximately 3–5 liters per hour and can be cleaned and reused indefinitely by replacing the filtering media when flow rate drops.

Build 3: The Improvised Field Filter (No Container)

1. Cut a section of green bamboo approximately 18 inches long, or use a large hollow log section
2. Pack the interior tightly with alternating layers of grass, sand, charcoal, and more grass
3. Allow water to drip through from one end into a collection vessel
4. Always disinfect output before drinking

This is a survival-tier option — low output, but buildable from pure natural materials with no tools.

Maintaining and Reusing Your DIY Filter

• When flow rate slows significantly, replace the sand and gravel layers
• Charcoal can be refreshed by heating in a fire until it glows, then cooling and rinsing
• Never let the filter sit wet and unused for more than 24 hours without flushing — biological growth can occur in the media
• If unused for several days, run two full passes of water through before using output for drinking

The Complete System: Filter + Disinfect

After filtering, always disinfect. Boiling kills bacteria, viruses, and protozoa and requires only a heat source and container. Chlorine bleach handles bacteria and most viruses with just a dropper and unscented bleach. Iodine tablets cover bacteria, viruses, and Giardia. A UV pen handles the full biological spectrum when batteries are available.

Filter first. Disinfect second. Drink with confidence.

The Takeaway

A DIY water filter built from a plastic bottle, sand, gravel, and charcoal is not a primitive last resort — it is a legitimate, functional water treatment tool that has saved lives in disaster situations around the world. The skill costs nothing to learn and requires nothing to practice. Build one today so you know exactly how to build one when it matters.

When gear runs out, knowledge takes over. This is that knowledge.
