How to Build a DIY Water Filtration System That Produces Potable Water

With the right materials and process, you can filter and treat water from almost any source. Here's how to build a system that actually works.

Clean drinking water is the most critical preparedness need — and one of the most misunderstood. Most people assume that if they have a filter, they have safe water. That's not always true. Filtration and purification are different things, and a complete system requires both.

This guide walks you through building a layered DIY water filtration system using materials that are widely available, inexpensive, and genuinely effective. We'll cover the science briefly so you understand what each stage does — then get into the build.

Understanding the Difference: Filtration vs. Purification

Filtration removes physical particles — sediment, debris, some bacteria, protozoa, and larger contaminants. A good filter makes water clearer and removes many biological threats. But filtration alone does not remove viruses, dissolved chemicals, or all biological contaminants.

Purification kills or neutralizes biological contaminants — bacteria, viruses, and protozoa — that filtration may miss. Methods include chemical treatment (chlorine, iodine), UV light, and boiling.

A complete system uses both. Filter first to remove particulates and improve clarity. Purify second to address biological threats. This sequence matters — purification is more effective on clear water.

The Four-Stage Filtration Model

A reliable DIY system works in four stages:

1. Pre-filtration — removes large debris and sediment
2. Biological filtration — removes bacteria, protozoa, and smaller particulates
3. Chemical/taste filtration — removes organic compounds, improves taste and odor
4. Disinfection — kills remaining biological threats

You can build this with two 5-gallon food-grade buckets, some basic hardware, and a quality filter element.

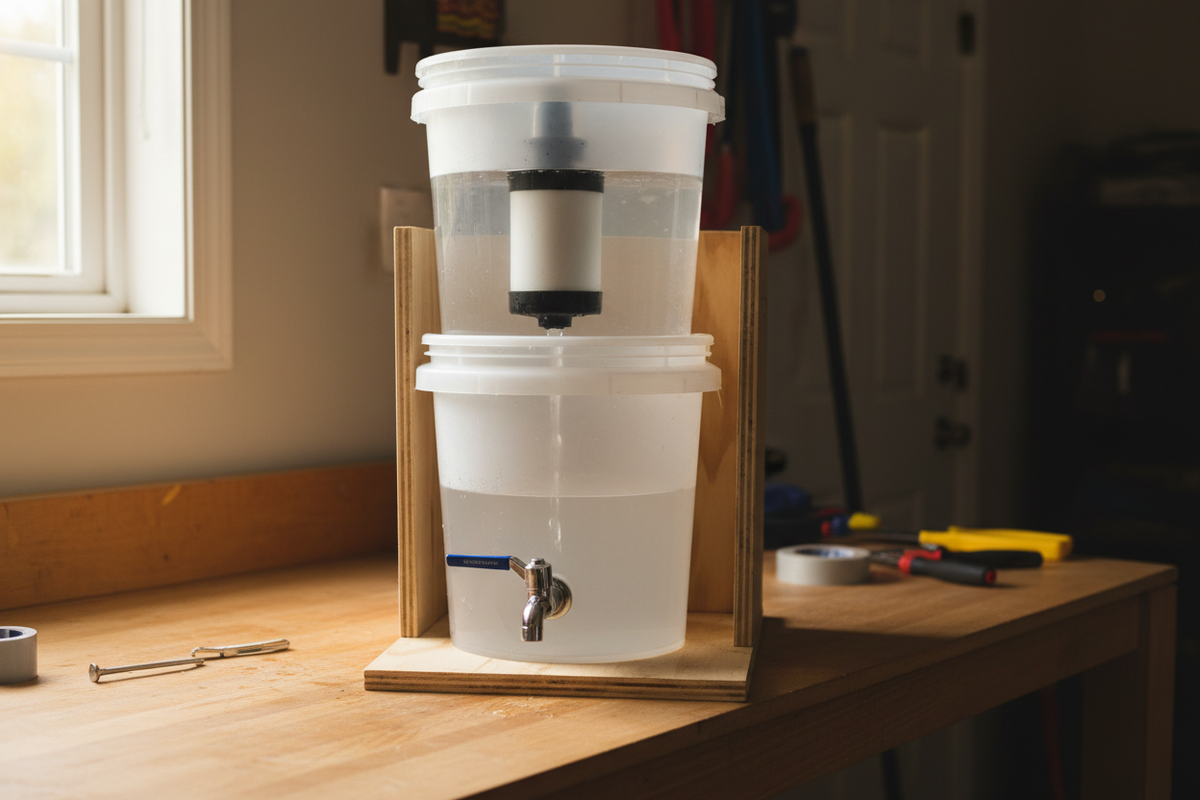

The Two-Bucket Gravity Filter System

This is the most practical DIY filtration setup for household use. No power required. Produces clean, potable water at a rate of 1–3 gallons per hour depending on the filter element used.

Materials

• Two food-grade 5-gallon buckets with lids
• One quality hollow fiber or ceramic filter element with fittings
• A drill and appropriate hole saw or spade bit
• Waterproof food-safe sealant
• Optional: activated carbon layer

Build Steps

Step 1: Prepare the upper bucket. Drill a hole in the center of the upper bucket's bottom sized to fit your filter element's threaded fitting. Thread the filter element through from inside the bucket so the filter body hangs down and the threaded end protrudes through the bottom.

Step 2: Seal the fitting. Apply waterproof food-safe sealant around the fitting where it passes through the bucket bottom. Allow to cure fully — typically 24 hours. This seal is critical. Any bypass around the filter defeats the entire system.

Step 3: Prepare the lower bucket. Drill a hole near the bottom of the lower bucket and install a spigot fitting, sealed the same way. This is your clean water draw point.

Step 4: Stack the buckets. The upper bucket sits on top of the lower bucket, with the filter element hanging into the lower bucket's interior. The upper bucket lid keeps debris out of unfiltered water.

Step 5: Test for leaks. Fill the upper bucket with clean tap water first. Check all fittings for leaks. Confirm water flows through the filter into the lower bucket and draws cleanly from the spigot. Fix any leaks before using with questionable water sources.

The Critical Component: Choosing Your Filter Element

What to look for:

• Hollow fiber membrane filters — rated to 0.1 micron, removes bacteria and protozoa, does not remove viruses
• Ceramic filters — rated to 0.2–0.5 micron, removes bacteria and protozoa, long lifespan, cleanable
• Ceramic + silver impregnated — adds some antimicrobial action to the ceramic element

What none of these remove on their own: viruses, dissolved chemicals, heavy metals, or agricultural runoff. For most emergency water sources in the U.S. — streams, lakes, rainwater, stored water — a quality hollow fiber or ceramic filter combined with chemical disinfection produces safe drinking water.

Adding an Activated Carbon Stage

Activated carbon dramatically improves taste and odor and removes many organic compounds, chlorine, and some chemicals. It does not remove biological contaminants on its own.

Option A — Pre-filter layer: Place a layer of granular activated carbon in a cloth or mesh bag inside the upper bucket above the filter element.

Option B — Carbon block pre-filter: Install an inline carbon block filter above the main filter element. More effective than loose carbon, easier to replace.

Stage 4: Disinfection

Boiling: The most reliable method. Bring filtered water to a rolling boil for one minute (three minutes above 6,500 ft elevation). Kills all biological pathogens.

Chemical treatment with unscented liquid chlorine bleach (6–8.25% sodium hypochlorite):

• 8 drops per gallon of clear filtered water
• 16 drops per gallon if water is still slightly cloudy
• Wait 30 minutes before drinking
• Water should have a slight chlorine smell — if it doesn't, repeat the dose and wait another 15 minutes

Water purification tablets: Follow manufacturer dosing instructions. Effective against bacteria, viruses, and most protozoa. Note: iodine tablets are not recommended for pregnant women or people with thyroid conditions.

UV treatment: A UV purification pen exposes water to UV light, neutralizing biological contaminants without chemicals. Fast, effective, leaves no taste. Works best on clear filtered water.

The Primitive Version: A Wilderness-Style Layered Filter

If you need to filter water with no manufactured components, a layered sediment filter can be built from natural materials. This is a pre-filter only — it does not produce potable water without a disinfection stage.

Layers from top to bottom: grass or cloth → charcoal (from hardwood fire, not lighter fluid) → fine sand → coarse sand → gravel → small hole at bottom for output.

Water poured through the top passes through each layer, with progressively coarser material removing larger particles and charcoal providing basic chemical absorption. Output water will be clearer but is not safe to drink without boiling or chemical treatment.

This is a field expedient, not a primary system. Use it when you have no other option, always followed by boiling.

Maintenance

• Backflush hollow fiber elements regularly — push clean water backward through the filter to clear accumulated debris
• Scrub ceramic elements with a clean brush when flow rate slows
• Replace carbon when taste and odor improvement diminishes
• Inspect all seals periodically — a compromised seal bypasses the filter entirely
• Store dry — hollow fiber filters can be damaged by freezing if stored wet

Tools Worth Considering

• Sawyer Squeeze Water Filter — the filter element that powers this build; rated to 0.1 micron, backflushable, million-gallon rated
• Platypus GravityWorks 4L Filter System — a purpose-built gravity filter if you prefer not to build your own
• Water Purification Tablets — the disinfection stage; essential complement to any filtration system
• Portable Water Filter Straw — individual-use filtration for field or go-bag use
• Family Gravity Water Filtration System — higher-capacity option for household use

The buckets, hardware, and activated carbon are available at any hardware or aquarium supply store. The filter element is where quality matters — don't compromise on it.

Preparedness isn't about fear. It's about capability. Understanding how to filter and purify water from any source is one of the most valuable skills a household can have — and now you have the knowledge to build a system that actually works.
